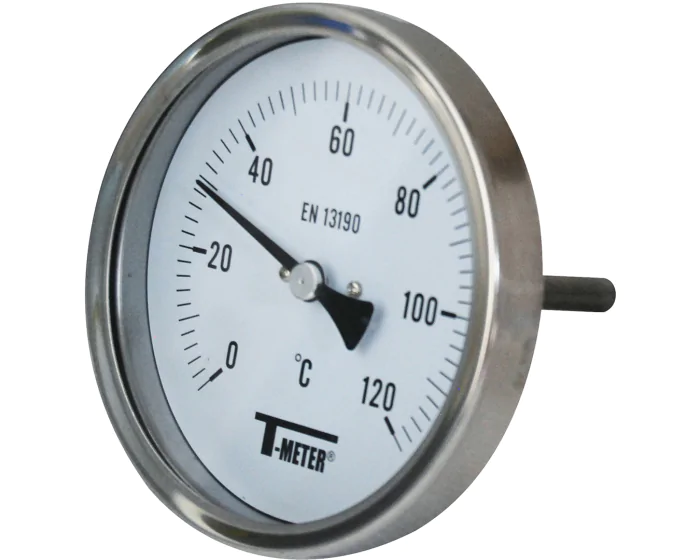

Syveco offers the 1685 bimetallic dial thermometer, all stainless steel, with 77 mm axial and immersion fitting, 1/2'' BSP male fitting, class 2 and sealed welded tube for gases and aggressive non-viscous liquids
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Construction standard | EN 13190 |
| Brand | T-METER |
| Liquid temperature range (°C) | -30 / 50 |
| Dial diameter (mm) | 100 |
| Fluid | Cold water |
| Protection index (IP) | IP 31 - Indoor applications |
| Housing material | Stainless steel |
| PS (bar) | 40 |
| Connections | BSP M |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Warranty period | 2 years |
| Type of thermometer | With dial |
| Plunger length (mm) | 77 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP M -30 / 50 | 1685001 | S1013400 |
€13.27
(excl. btw)
|
add to cart |
| BSP M 0 / 120 | 1685002 | S1013401 |
€13.27
(excl. btw)
|
add to cart |
| BSP M 0 / 160 | 1685003 | S1013402 |
€13.27
(excl. btw)
|
add to cart |
| BSP M 0 / 200 | 1685004 | S1013403 |
€13.27
(excl. btw)
|
add to cart |
